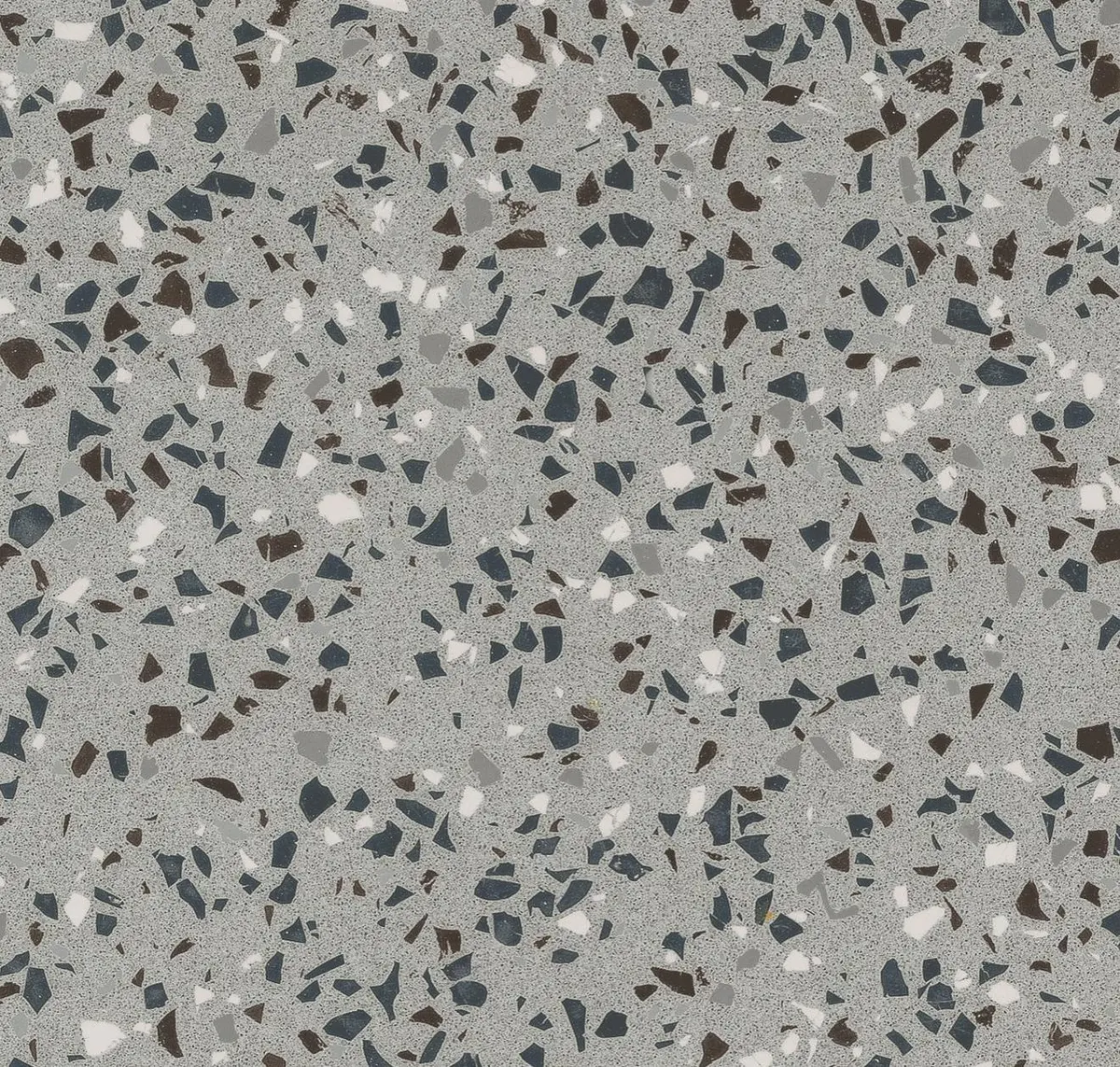

Please note that samples are provided for color and pattern selection purposes only and may not represent the complete system construction.
Warranty
1 year from date of installation
Manufacturer Notes
Stonhard offers a range of multilayered flooring systems, with each layer carefully engineered to meet the specific performance requirements of different applications. Please contact your Stonhard Architectural Design & Engineering representative to review the appropriate system build-up for your project. Stonhard offers a variety of sustainability documentation and certifications, including CDPH compliance certificates, Health Product Declarations (HPDs), and Environmental Product Declarations (EPDs). Please contact your Stonhard Architectural Design & Engineering Representative to obtain copies of the applicable documentation for your project.
Material & Finish
Construction
Components are packaged separately and mixed together on-site
Content
A multi-component system consisting of a urethane resin, curing agent, coarse aggregate, a UV-resistant, aliphatic, polyaspartic urethane grout coat, and a water-based polyurethane coating.
Format
Poured / Liquid
Availability & Procurement
Availability
Typically Stocked, Made to Order / Special Order
City Of Origin
Maple Shade
Country Of Origin
United States
State Of Origin
New Jersey
Technical Specifications
Impact Resistance
ASTM D-2794 tested. 60 in/lbs.
Overall Thickness
0.1875
Size
Covers approximately 220 sqft per unit
Applications & Usage
Application Filter
Flooring|Flooring/Operating Rooms & Labs
Installation
A specially trained application crew from Stonhard will complete installation. First, patching, leveling, and priming of the substrate is needed. Components will then be mixed together and uniformly spread over the primed and sealed substrate using a screed applicator. Steel finishing trowels are used to compact and smooth the surface of the material to the required thickness. A chemical reaction between components causes the mixture to harden. Mix and apply the topcoat sealant material over the hardened floor. Installation can only be completed when the slab and air temperatures are between 65° - 85° F. Relative humidity must be below 80%. Refer to manufacturer's documentation for additional information.
Suitable Substrates
Suitable for application over properly prepared concrete, wood or steel surfaces. It is not recommended for use over asphalt, mastic, gypsum-based products, brick, or painted surfaces.
Performance Metrics
Abrasion Wear Resistance
ASTM D-4060, CS-17 tested. 0.03 gm
Elongation
ASTM D-638 tested. 150%.
Flammability
ASTM E-648 tested. Class 1
Hardness
ASTM D-2240, Shore D tested. Result of 85
Light Blocking
Complete
Maintenance
For regular maintenance, use Stonkleen D2G with a mop and bucket or an automatic floor scrubbing machine. Deep cleaning for healthcare environments may require diluted Stonkleen AS9 to remove sanitizing and disinfecting films and residues that are left behind from health code protocols that, over time, will leave heavy build-up and dull the floor. Refer to manufacturer's documentation for additional information
Performance
Has a cure rate of 12 hours for foot traffic and 24 hours for normal operations
