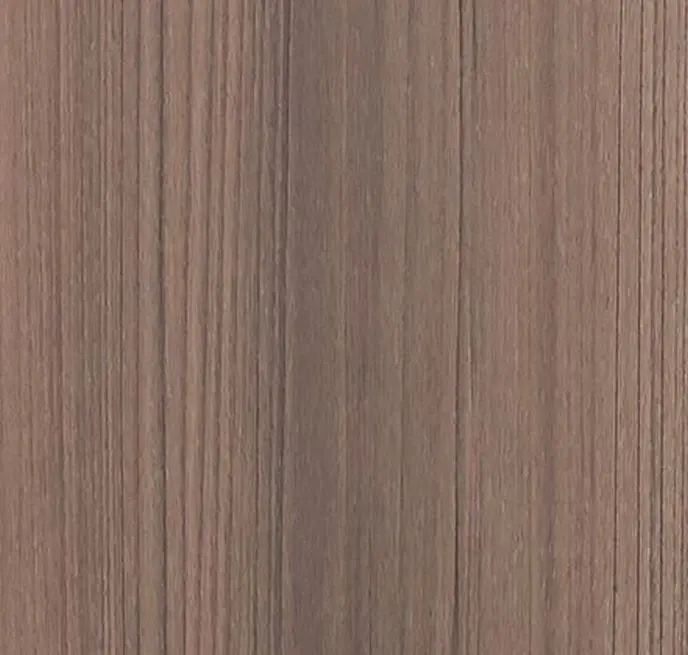

Sunrise Cedar

Name: Sunrise Cedar
Brand: Nevamar
SKU: 101480943

Laminate

Overnight

Commercial & Residential

Sunrise Cedar

Sample size: 1.9 in x 2.3 in x 0.1 in

Arrives tomorrow

Collection Name: Standard HPL
Manufacturer SKU: WZ2200
Price Range: $
Product Name: Sunrise Cedar
Subbrand Name: Panolam
Warranty: 1 year limited warranty
Manufacturer Notes: Do not expose to extreme humidity, continuous sunlight, or temperatures above 275°F (135°C) for extended periods of time

Construction: Manufactured in a flat press by laminating paper saturated in melamine resin with phenolic-impregnated kraft layers at high pressure and heat. Panels are trimmed to size and the backs are sanded to facilitate bonding to a substrate. Material thickness is determined by the number of kraft layers bonded together
Content: Melamine-saturated decorative paper laminated to a phenolic-impregnated kraft paper core
Finish: Armored Protection (finish code: T) comes standard. Alternatively, choose from 26 other finish options
Format: Panel / Sheet

Availability: Typically Stocked, Limited Stock, Made to Order / Special Order, Stocked in North America
City Of Origin: Auburn
Country Of Origin: United States
Custom Capabilities: Other widths and thicknesses available upon request

Dimensional Stability: Tested to standard NEMA/LD 3-2005 for dimensional change. Results varied between 0.25% - 0.30% in the machine direction and 0.45% - 0.60% in the cross direction depending on product type and thickness.
Edge End: Edges should be filed smooth and oriented towards the substrate to help prevent stress cracks and to minimize chipping
Impact Resistance: Tested to standard NEMA/LD 3-2005 for ball impact resistance. Results varied between 40in-66in depending on product type and thickness.
Overall Thickness: 48
Product Features: Customizable
Size: 36in x 96in, 36in x 120in, 36in x 144in, 48in x 96in, 48in x 120in, 48in x 144in, 60in x 96in, 60in x 120in, 60in x 144in

Application Filter: Bath|Countertop|Door|Kitchen|Millwork|Furniture|Furniture/Systems Furniture|Wall
Installation: Use carbide-tipped blades and router bits for cutting purposes. Keep feed rates slow and tool speed high. The inside corners of cutouts should have a minimum radius of 0.125in and be filed smooth. When fasteners are required, it is advisable to drill an oversized hole through the laminate first. These strategies reduce the likelihood of stress cracks. Refer to the Postforming Technical Bulletin for postforming guidance
Recommended Adhesive: Solvent or water-based contact cement, white glue (PVA), epoxy, or hot melt glue. Consult your adhesive supplier for specific application requirements.
Suitable Substrates: Medium to high density fiberboard, particleboard, or metals are suitable substrate options. Do not glue directly to plaster walls, gypsum wallboard, or concrete. The use of a backing sheet is recommended to minimize warpage. Apply to the opposite side of the substrate. The thickness of the backing sheet should be relatively equal to the thickness of the decorative laminate on the face of the assembly.

Abrasion Wear Resistance: Tested to standard NEMA/LD 3-2005 for wear resistance. Result of 1,000 cycles
Flammability: Tested to standard ASTM E84 and CAN/ULC-S102-M. Results dependent on the HPL product type, bonding substrate, and adhesive. See Technical Bulletin for additional information
Flexural Strength: NF39 Bending Radius: 10 mm (NEMA/LD 3-2005 3.14) F28 Bending Radius: 7 mm (NEMA/LD 3-2005 3.14)
Light Blocking: Complete
Lightfastness: Tested to standard NEMA/LD 3-2005 for light resistance. Resulted in no effects
Maintenance: Cleaning with a solution of warm water and liquid dishwashing detergent is all that should be required in most cases. Stains may be removed with most non-abrasive household cleaners such as FORMULA 409®, GLASS PLUS® or WINDEX® with AMMONIA D®. Light scrubbing with a soft bristled brush may be necessary to remove stains from the depth of the structure on some textured surfaces. If the stain persists, use a paste of baking soda and water and apply with a soft bristled brush. Stubborn stains that resist any of the above cleaning methods may require the use of undiluted household bleach. Note that prolonged exposure of the laminate surface to bleach will cause discoloration. Avoid abrasives and harsh chemicals
Stain Resistance: Stain 1-10 No Effect, Stain 11-15 No Effect (NEMA/LD 3-2005 3.4)
Water Resistance: Tested to standard NEMA/LD 3-2005 for boiling water resistance. Resulted in no effects.

Human Health Impact: CDPH Standard Method v1.2-2017, Declare Product Label, Declare Product Label - Declared, Low Emitting/Low VOC, UL GREENGUARD, UL GREENGUARD GOLD, Declare Product Label - LBC Red List Approved
VOC Emissions Testing Methodology: CDPH / CHPS 01350 Compliant

Ecosystem Health: Forest Stewardship Council (FSC) Certified - Chain of Custody

Social Equity Impact: Forest Stewardship Council (FSC) Certified, Forest Stewardship Council (FSC) Certified - Chain of Custody

Circular Economy: Declare Product Label, Declare Product Label - Declared, Forest Stewardship Council (FSC) Certified, Declare Product Label - LBC Red List Approved
