Wood particle base board coated with melamine-infused decorative paper on both sides
Finish

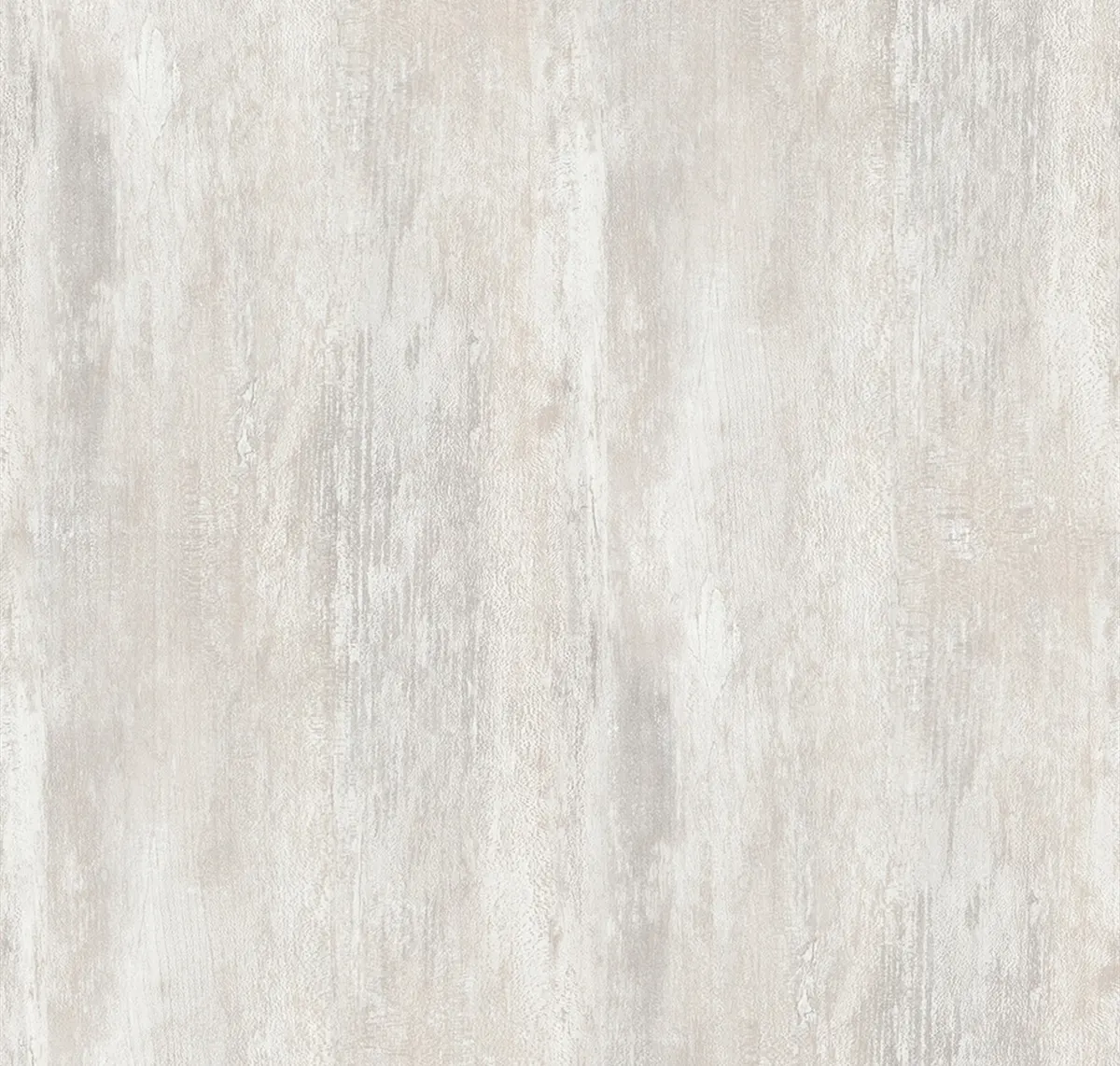

TSS Texture
Format
Panel / Sheet
Availability & Procurement
Availability
Typically Stocked, Stocked in North America
Technical Specifications
Impact Resistance
Tested to standard EN 14323:04 for impact stress with large diameter steel ball. Result of 140 cm.
Overall Thickness
25
Applications & Usage
Application Filter

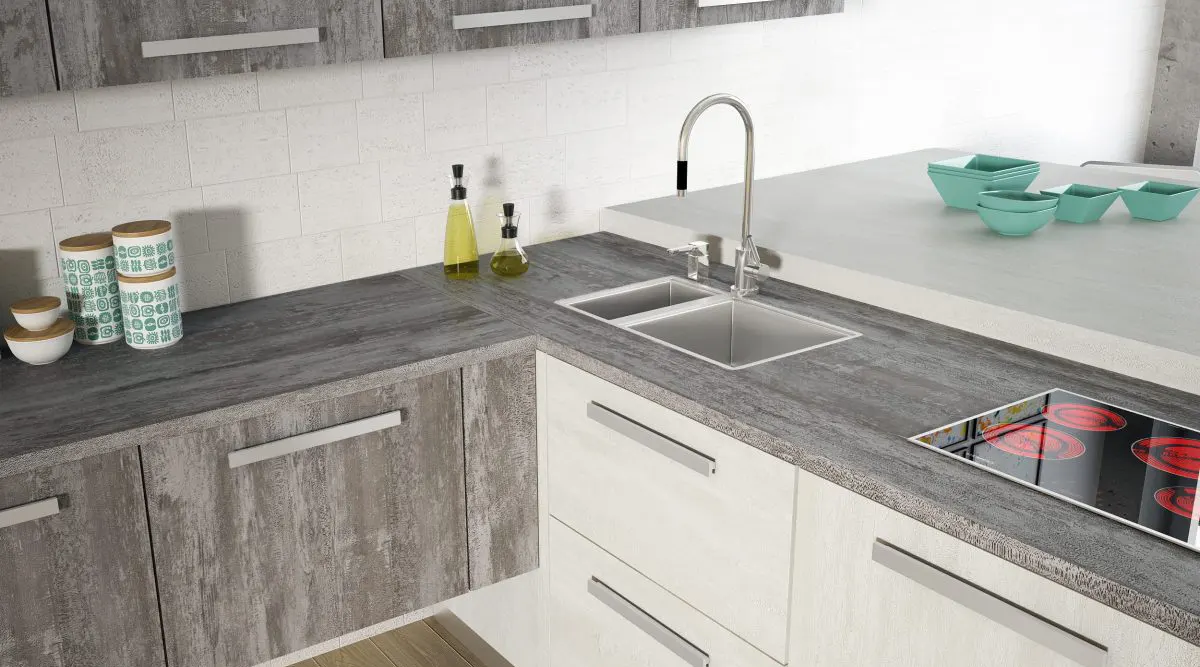

Bath|Decor|Kitchen|Furniture
Installation
Cut with any normal cutting disc such as the Freud LU3F with -3º back-slanted teeth
Performance Metrics
Abrasion Wear Resistance
Tested to standard EN 14323:04 for abrasion resistance. Grade 1 (25/150 cycles) result. Also tested to standard EN 14323:04 for scratch resistance. Grade 5 result
Flammability
Tested to standard EN 13501-1. Result of D-s2, d0
Flexural Strength
Tested to standard EN 310 for flexural strength. Results are depdendent on thickness. 10-12mm = 11N/mm². 16-18mm = 11N/mm². 19-25mm = 10N/mm²³. Also tested for modulus of elasticity. 10-12mm = 1800N/mm². 16-18mm = 1600N/mm². 19-25mm = 1500N/mm².
Light Blocking
Complete
Maintenance
Use a damp, non-abrasive cloth and soap. Wipe dry. Avoid harsh chemicals such as solvents, alcohol, and ammonia
Tensile Strength
Tested to standard EN 319. Results are depdendent on thickness. 10-12mm = 0.40N/mm². 16-18mm = 0.35N/mm²³. 19-25mm = 0.30N/mm²³.
Sustainability
Climate Health
Climate Impact
Programme for the Endorsement of Forest (PEFC) Certified, ISO 14001 Environmental Management System (EMS), CARB Compliant
Ecosystem Health
Ecosystem Health
Forest Stewardship Council (FSC) Certified|ISO 14001 Environmental Management System (EMS)|Programme for the Endorsement of Forest (PEFC) Certified|Forest Stewardship Council (FSC) Certified - Chain of Custody
Social Health & Equity
Social Equity Impact
Forest Stewardship Council (FSC) Certified, Forest Stewardship Council (FSC) Certified - Chain of Custody, Programme for the Endorsement of Forest (PEFC) Certified
