Since TerraMai's wood is a natural product, it will vary in appearance. The grain and unique characteristics of the wood remain. Please refer to product images or request samples for a broader representation of the color and character of your selection.
Material & Finish
Construction

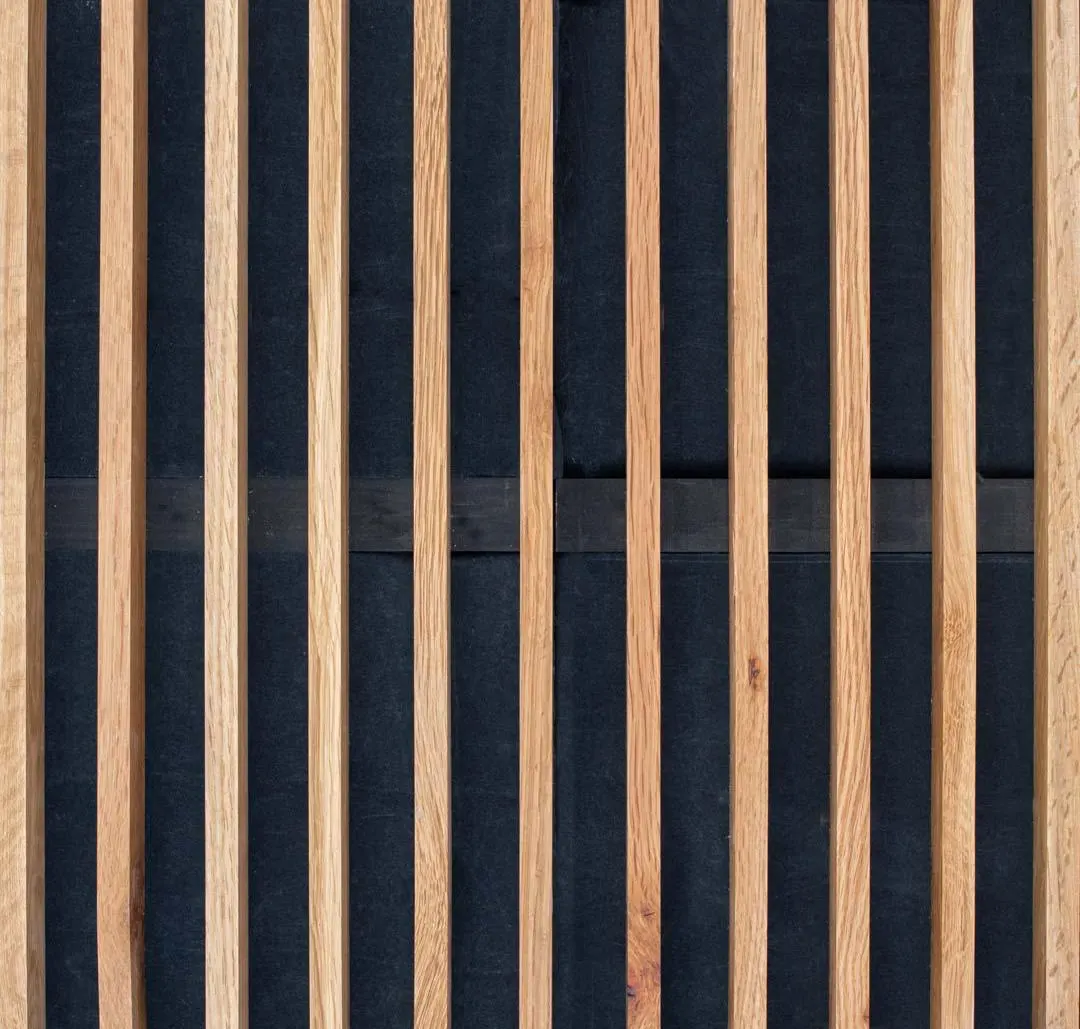

Surfaced four sides (S4S). Six 5/8in (16mm) wide x 1-3/8in (35mm) deep x 95-7/8" (2435mm) long slats spaced 1-3/8in apart installed on nine 1-1/2" x 1" x 12"; Rows of slats may be made up of multiple pieces, up to 1 butt joint per row (may be custom ordered with full length slats); 1" or 2" thick black acoustic insulation bonded to back between rails
Finish
Zero-VOC oil or low-VOC polyurethane
Format
Modular, Plank
Wood Species
Oak, Acacia, Douglas Fir, Redwood
Availability & Procurement
Availability
Made to Order / Special Order
Custom Capabilities
Custom panel sizes, shapes, wood species, slat sizing and spacing, finishes, and acoustic insulation thickness available
Technical Specifications
Edge End
Square-edge
Length
4.2
Overall Thickness
60
Product Features
Customizable
Size
95-7/8 in L x 12 in W
Total Weight
1’ x 8’ Panel - 19lbs (8.6kg)
Applications & Usage
Application Filter
Ceiling|Wall
Installation
Walls - Z-Clips, Face Screw through cross rails to structural members; Ceilings - Screw to Heavy Duty 15/16??? T-Bar Grid System, Face Screw through cross rails to structural members
Performance Metrics
Acoustics
ASTM C423, NRC Rating of 1.00, 0.90 for Ceilings and 0.95, 0.70 for Walls; Sound Absorption Average (SAA) is 1.02, 0.92 for Ceilings and 0.92, 0.68 for Walls
